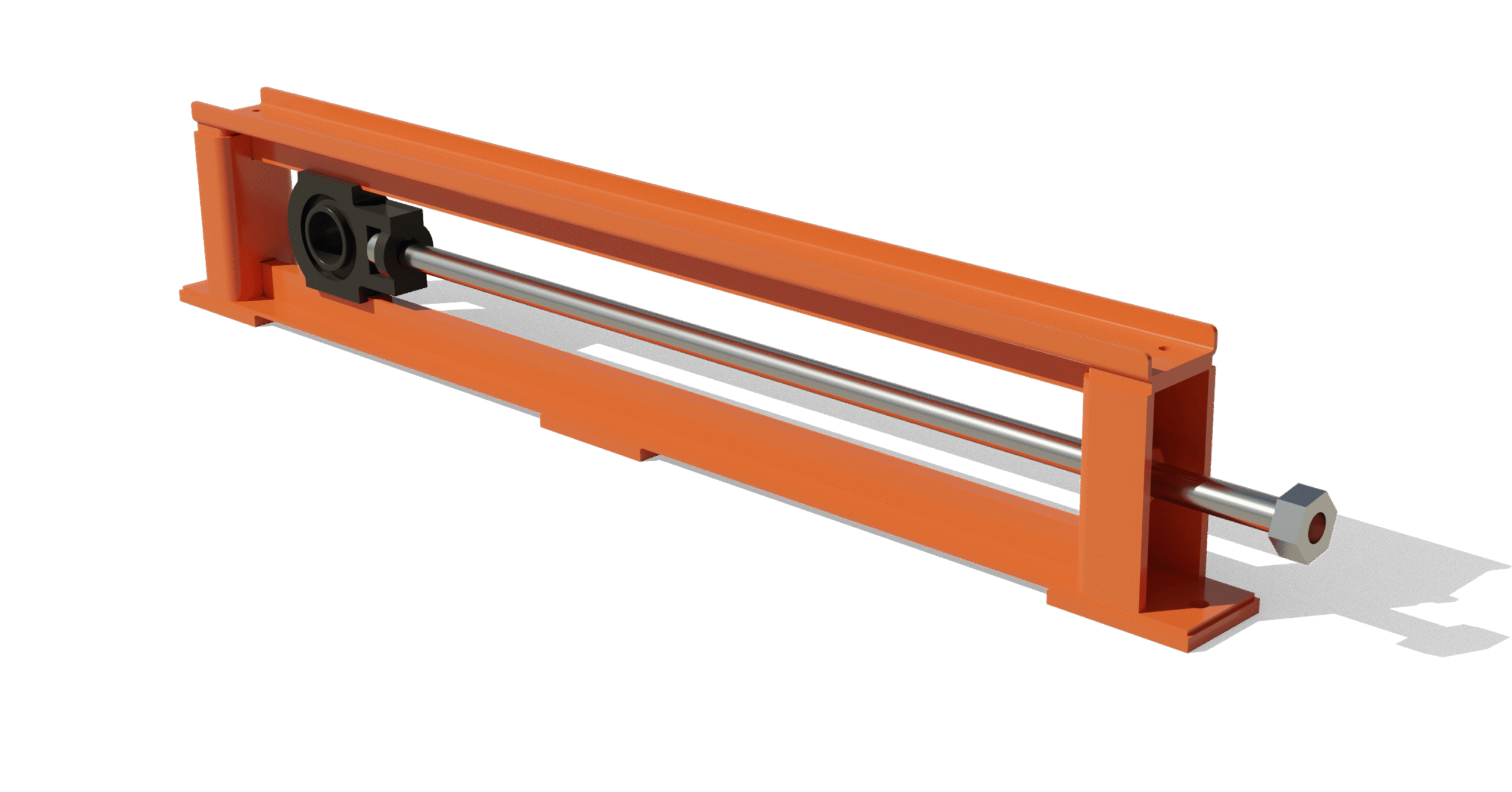

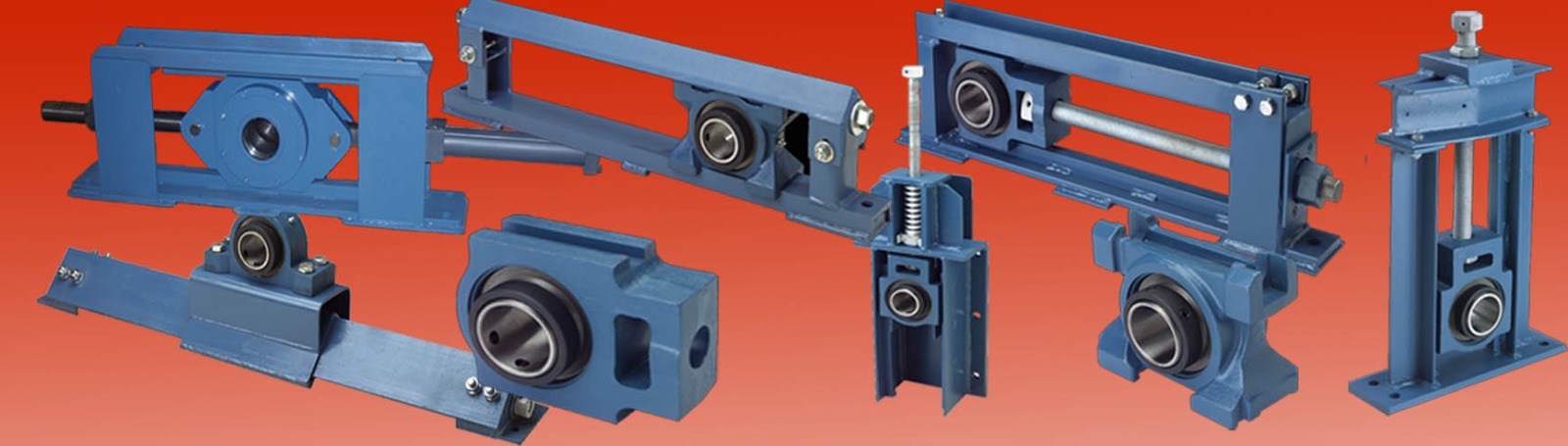

The screw take-up system consists of a pair of heavy-duty ACME threaded rods mounted on both sides of the conveyor frame, usually at the tail end. These threaded rods are connected to bearing blocks that support the tail pulley or take-up pulley. When the screws are manually rotated using a wrench or handle, the bearing blocks move along precision guide slots or rails.
This movement allows the pulley to shift backward to increase belt tension or forward to reduce it. Such a mechanism offers accurate and controlled adjustment, making it highly effective for maintaining optimal belt performance. The robust construction ensures durability, while the simple design allows easy operation and maintenance.
DYNAMOVE EQUIPMENTS is a leading manufacturer of Vertical Take-Up systems in Kolkata and across India, known for delivering reliable and precision-engineered conveyor components. The Vertical Take Up (also referred to as a gravity take-up or vertical tensioner) is a vital tensioning device used in belt conveyor systems. Its primary function is to automatically maintain proper belt tension by allowing the take-up pulley to move vertically under the influence of gravity.

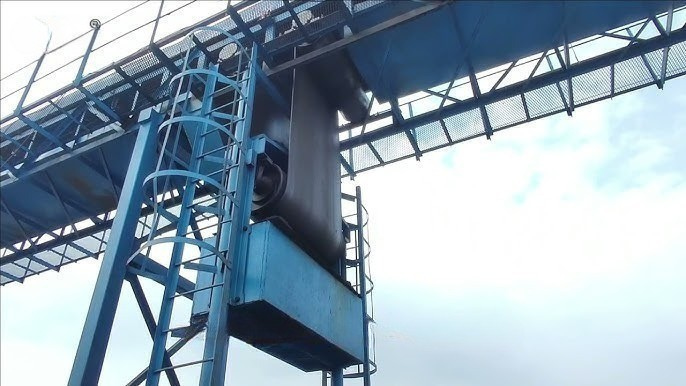

The vertical take-up system consists of a heavy-duty structural steel frame with a movable carriage that holds the take-up pulley. This carriage is guided by precision rails or channels on both sides. Calculated counterweights are attached to the carriage, which apply continuous downward force through gravity. As the belt stretches over time, the counterweight automatically pulls the carriage downward, keeping the belt under constant and uniform tension.
This self-adjusting mechanism eliminates the need for frequent manual intervention and ensures consistent belt tracking, reduced slippage, and longer belt life. The robust construction with high-quality bearings and guide rails ensures smooth vertical movement and durability even in heavy-duty applications.
Vertical Take Up systems are particularly suitable for medium to long-distance conveyors where automatic tensioning is preferred. They are widely used in industries such as cement, power plants, mining, steel, and bulk material handling where reliable and maintenance-free belt tensioning is essential for uninterrupted operation.
DYNAMOVE EQUIPMENTS is a leading manufacturer of Horizontal Gravity Take-Up systems in Kolkata and across India, known for delivering reliable and precision-engineered conveyor components. The Horizontal Gravity Take Up is a highly effective tensioning device used in long belt conveyor systems. Its primary function is to automatically maintain proper belt tension using the force of gravity through a system of counterweights and horizontal movement.

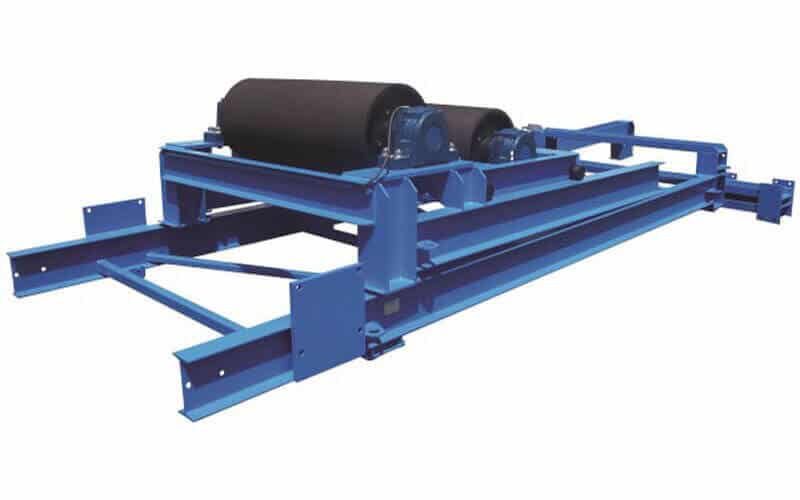

The horizontal gravity take-up system consists of a sturdy structural steel frame with a movable take-up carriage that travels horizontally along precision guide rails. The take-up pulley is mounted on this carriage, and heavy counterweights are attached to it. As the conveyor belt naturally elongates during operation, the counterweight pulls the carriage backward, automatically tightening the belt and maintaining consistent tension throughout the system.
This self-adjusting mechanism provides uniform tension without frequent manual intervention, reduces belt slippage on the drive pulley, improves belt tracking, and significantly extends belt life. The robust design with high-quality bearings ensures smooth horizontal movement even under heavy loads.
Horizontal Gravity Take Up systems are particularly suitable for long-distance and high-capacity belt conveyors where automatic and maintenance-free tensioning is required. They are widely used in cement plants, thermal power plants, mining, steel industries, and other bulk material handling applications where reliable conveyor performance is critical.
Leading manufacturer of belt conveyor systems, bucket elevators, screw conveyors, vibrating screens, idlers, pulleys, steep angle conveyors, roll crushers, hammer mills, impact crushers, and travelling trippers in Kolkata
